Cezanne

简约平凡里窥见真章!

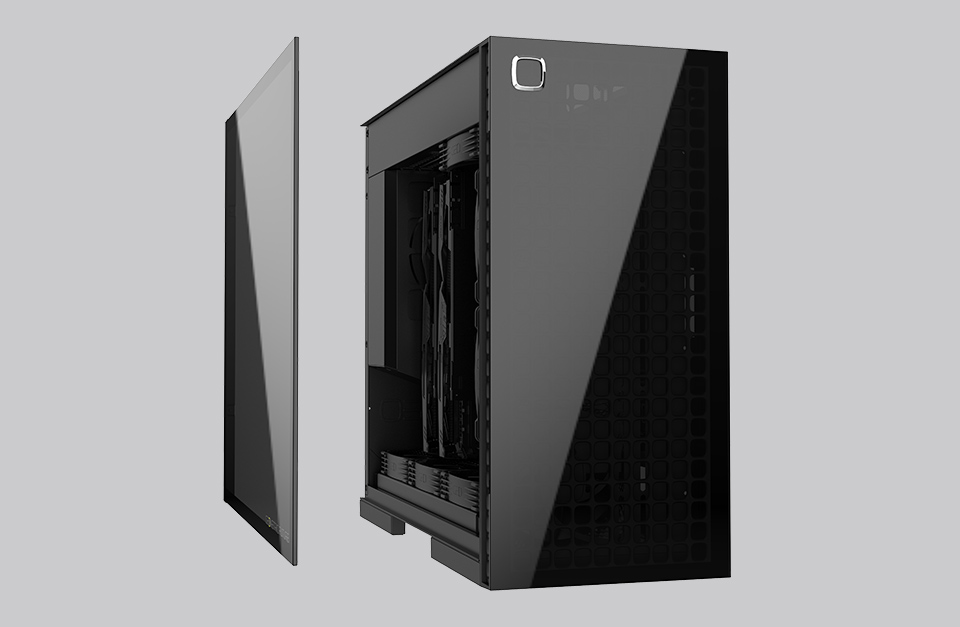

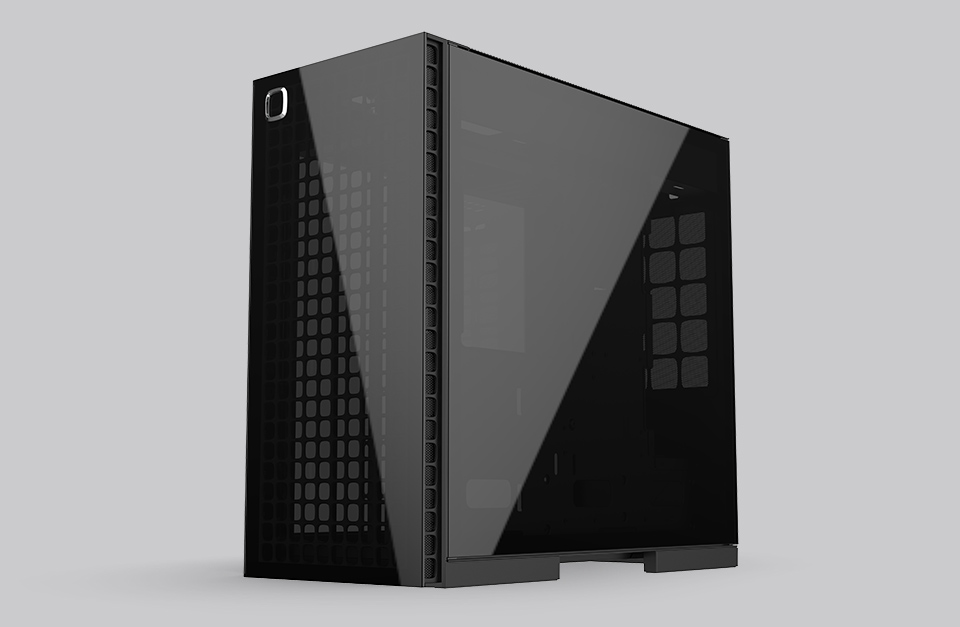

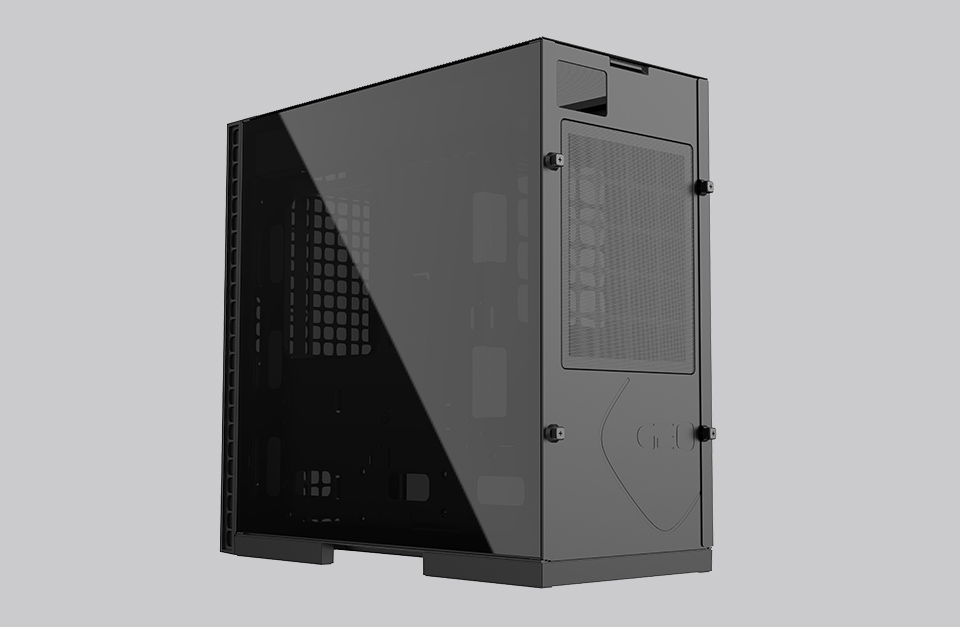

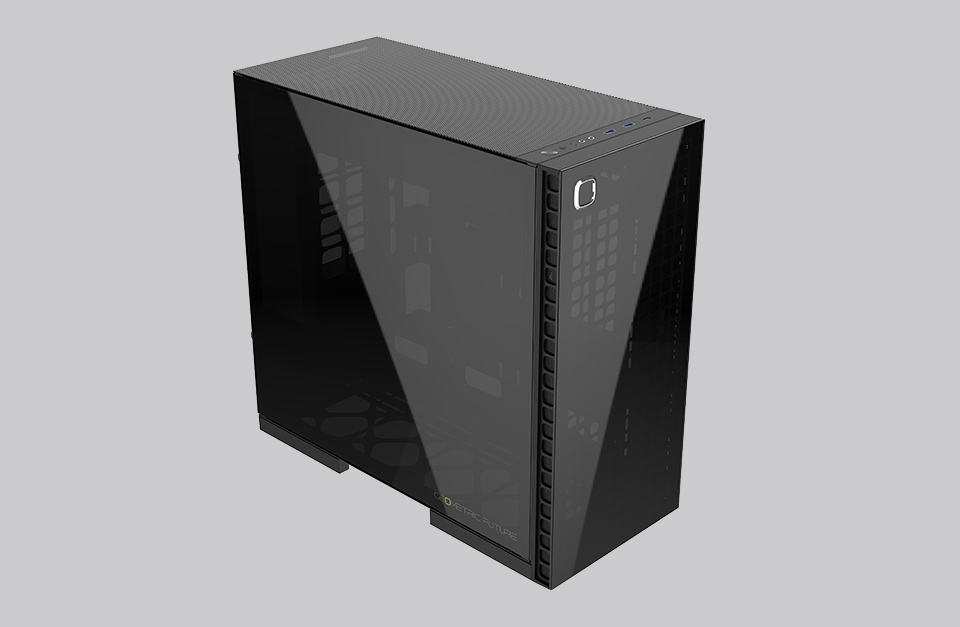

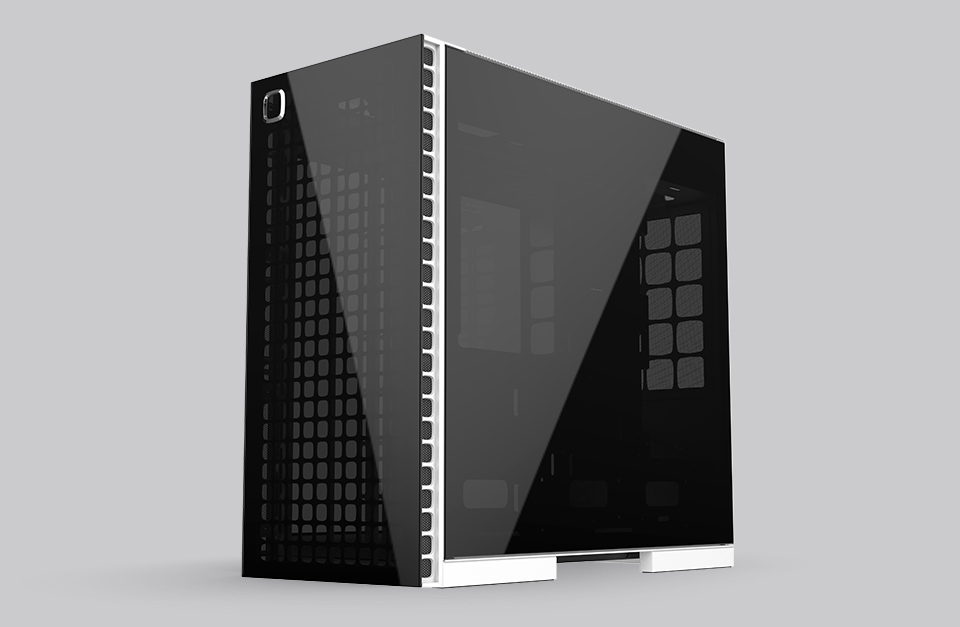

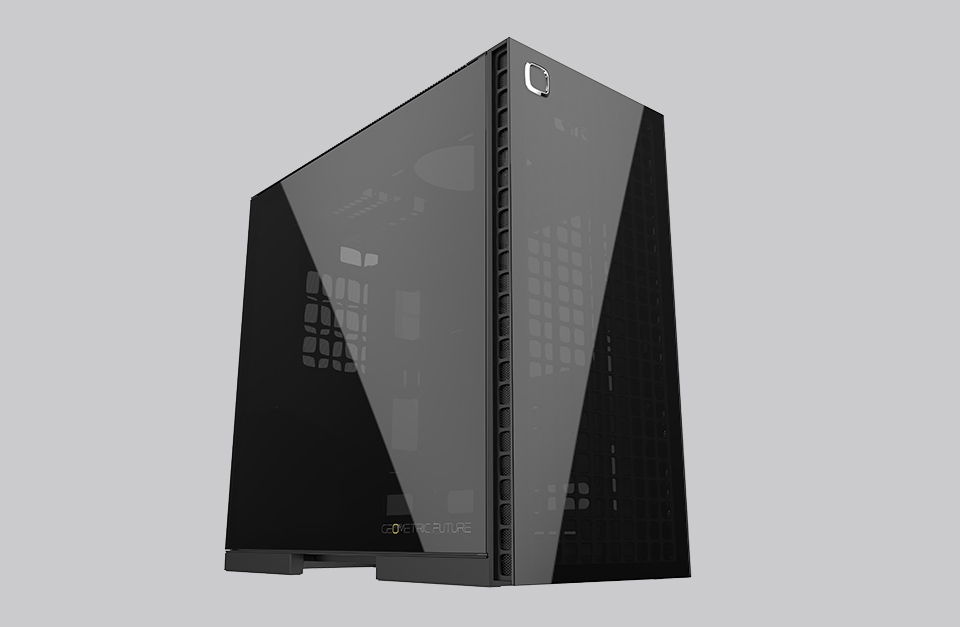

三面全景钢化玻璃精致通透,美轮美奂!

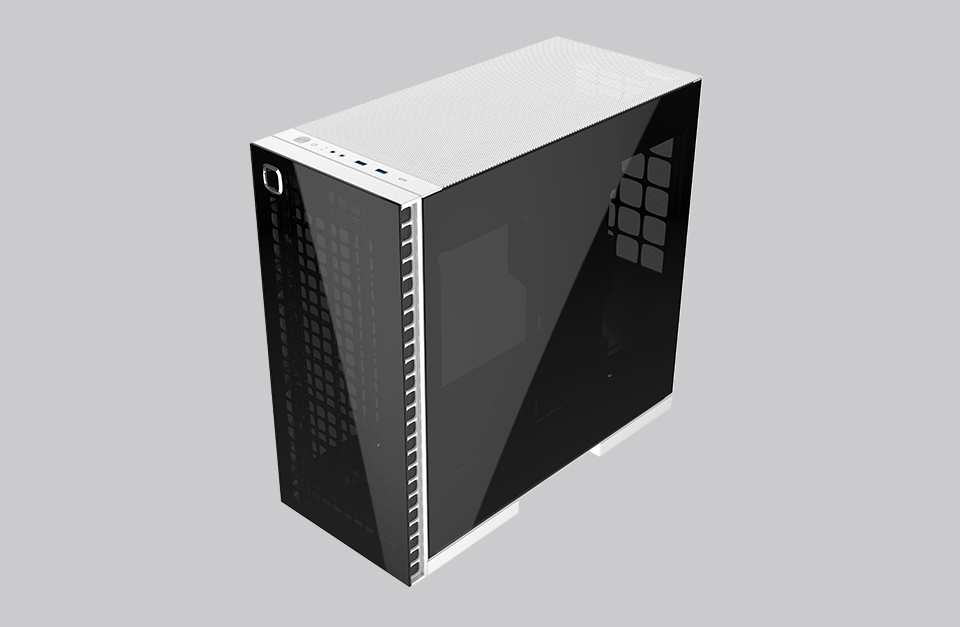

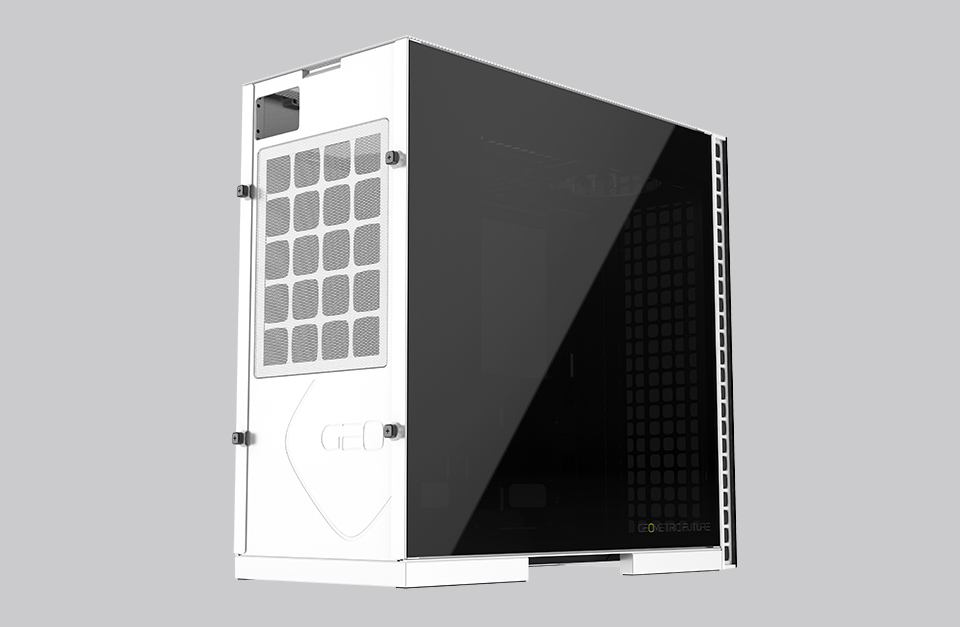

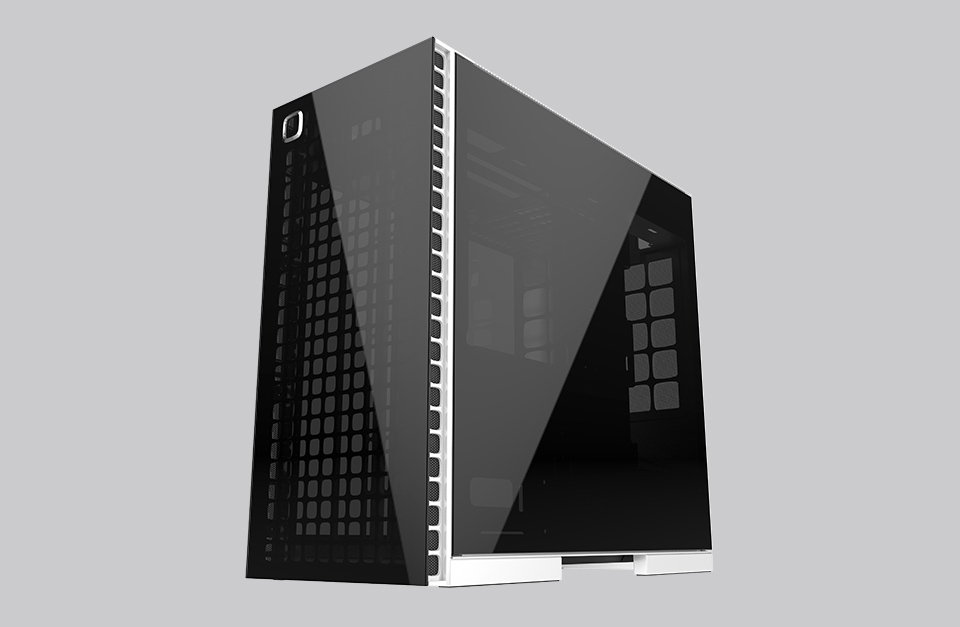

颜色
相关下载

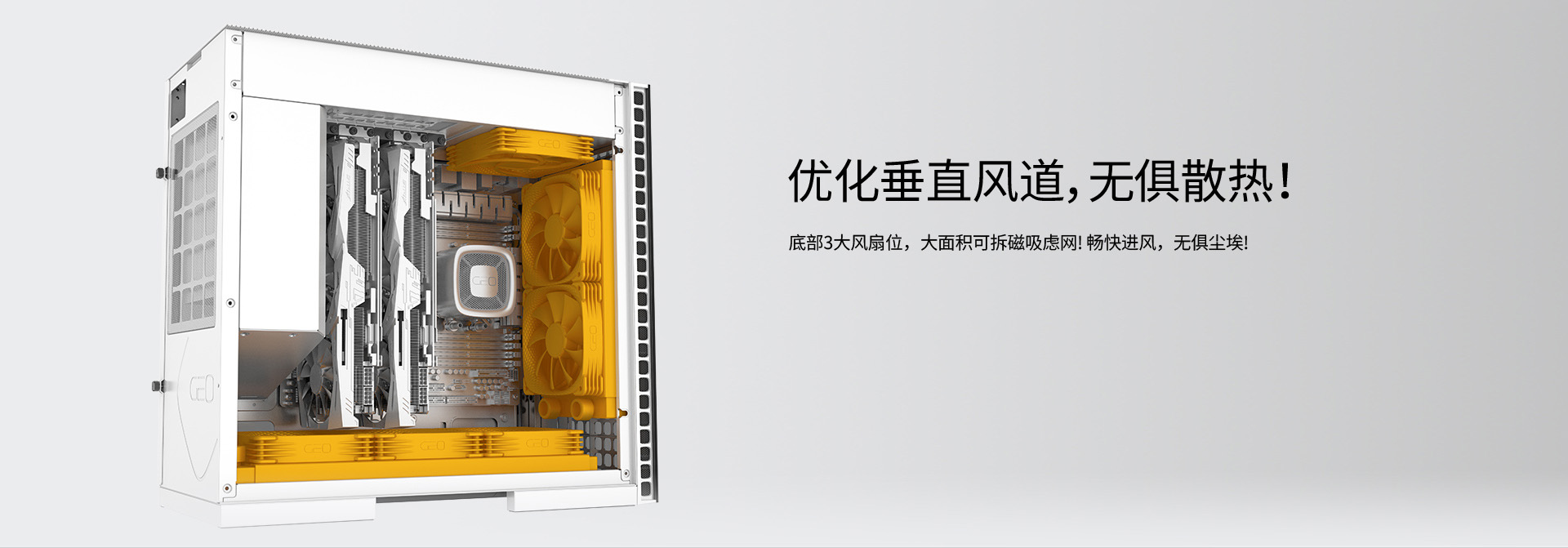

  • 360+120水冷安装
    为性能保驾护航

  • 兼容主流30系显卡,显卡支持长度达
    350mm,竖装显卡无形变!

  • CPU 散热器限高达162mm
    全面兼容主流散热器!

机箱参数
Model 6
Case Type Mid Tower
Material Steel T0.8 ,Tempered Glass T4.0
Product Dimension ( H x W x D ) 450 x 215 x 450 mm, 17.7“ x 8.5” x 17.7”
Drive Bay Max:4 x 3.5”/2.5“ tray
M/B Form Factor

E-ATX(12” x 11”), ATX , Micro - ATX , Mini - ITX

Power Supply PSII:ATX 12V(Length < 180 mm)

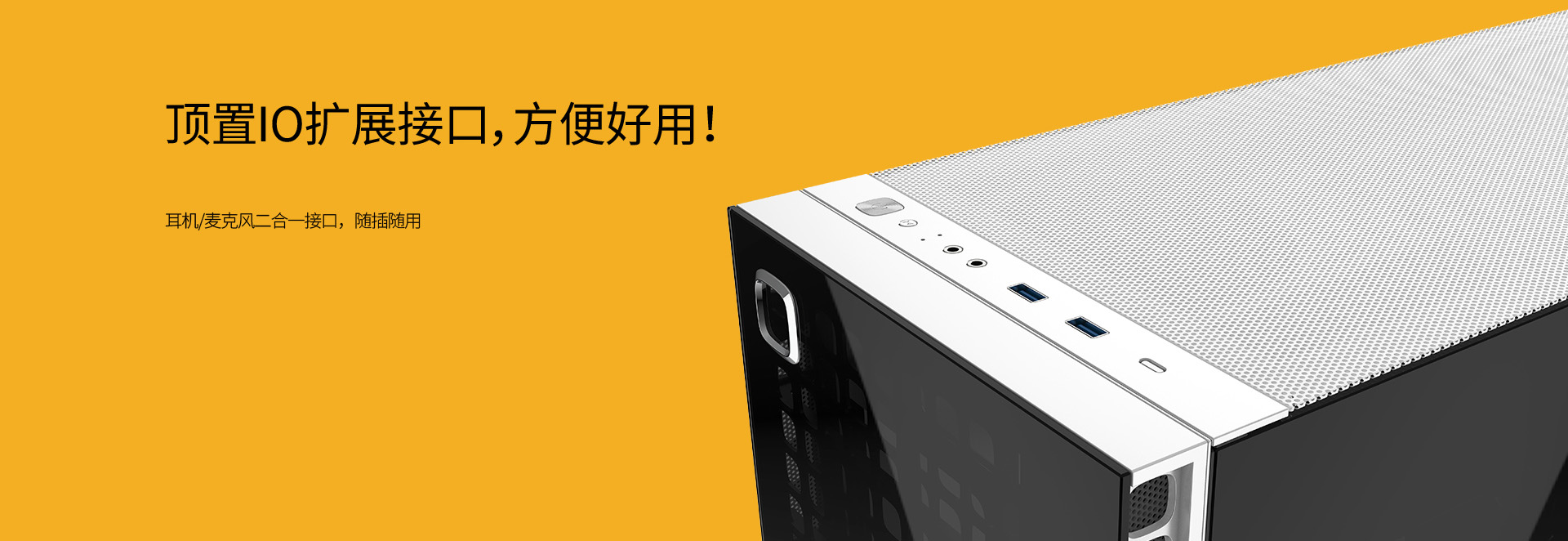

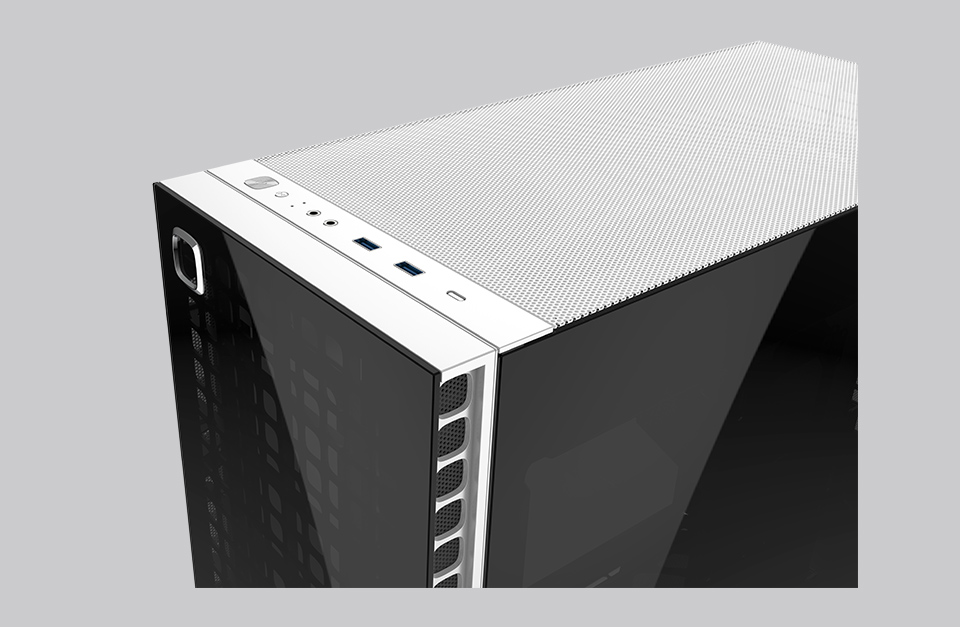

I/O Ports USB 3.0 x 2 , HD Audio (CTIA-SPK/MIC)
Expansion Slots( Maximum Space) PCI-E x 7:Length <350mm(No Cooling of bottom) / Width <165mm
Lateral PCI-E x 2:Length <360mm(No Cooling of bottom) / Width <165mm / Height<54mm
Thermal Solution

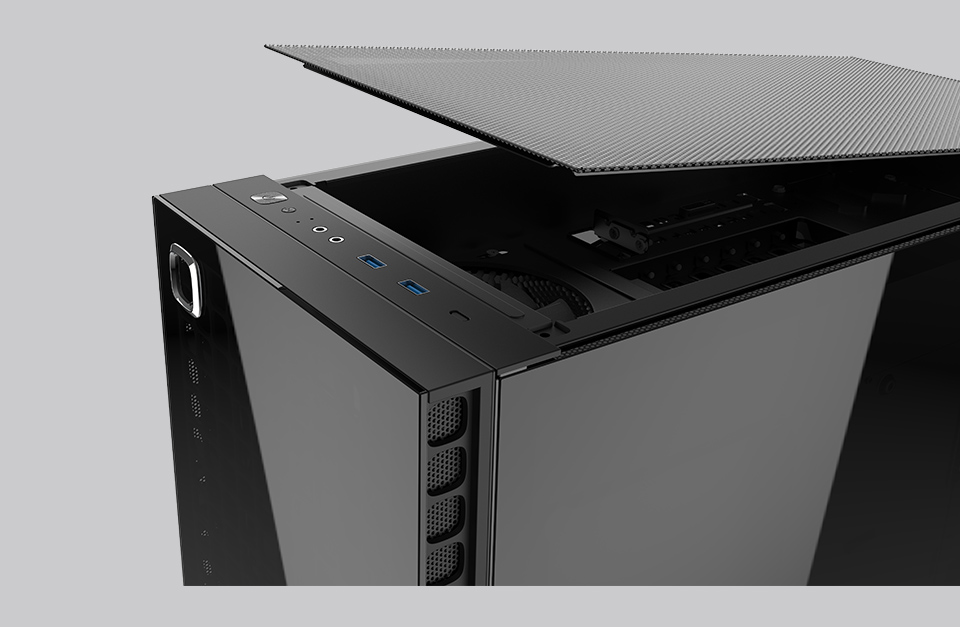

Top :120mm Fan x 1 120mm Radiator

Front:120mm Fan x 3 / 140mm Fan x 2

240/280mm Radiator ( Length < 361mm / Thickness is related to the height limit of the main board )

Bottom:120/140mm Fan x 3

360/280mm Radiator ( Length < 440mm )

CPU Heatsink

Height < 162mm
