Celluloid

张显个性,拼色赛璐璐舍我其谁。
午夜蓝,时尚咖,柠檬黄三色碰撞,活出自我!

颜色
相关下载
  • 机背实现6个3.5“ or 2.5“ HDD混装位
    标配4个,可增加2个至6个
    比同级产品增加50%

  • 3.5XPCI-E槽宽保证侧装显卡进风
    比同级产品增加50%

  • 双360mm+120mm冷排
    散热扩容比同级产品增加40%
    后板有限支持420mm冷排

机箱参数
Case Type Mid Tower
Material Steel T1.0 ,Tempered Glass T4.0
Product Dimension ( H x W x D ) 500×230×500mm, 19.7"×9.1"×19.7"
Drive Bay Max : 3x3.5'', 3x2.5''或 6x2.5'' tray
M/B Form Factor

E-ATX(12"×13"), ATX, Micro-ATX, Mini-ITX

Power Supply PSII : ATX 12V(Length < 220 mm)

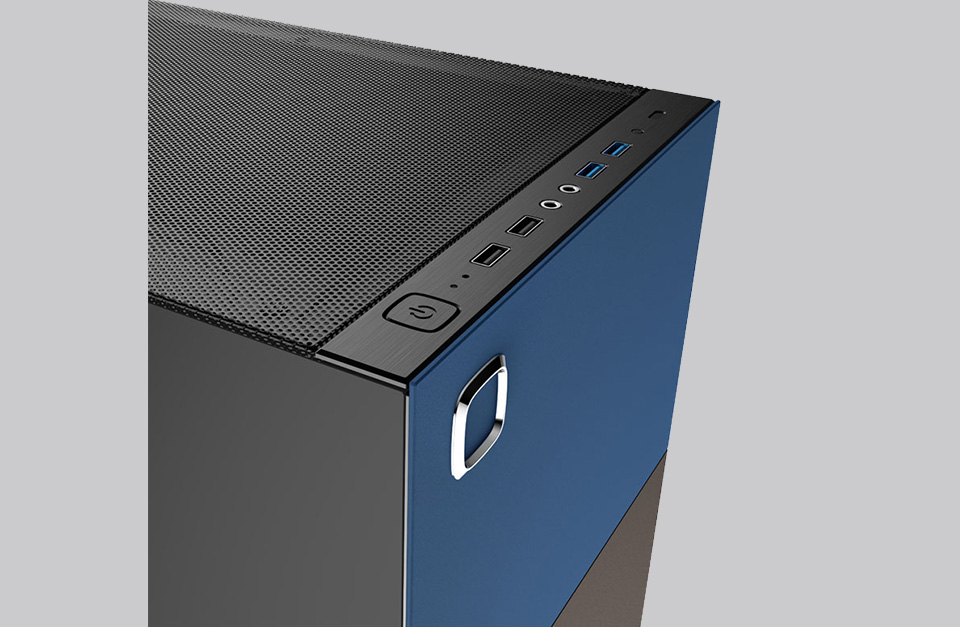

I/O Ports USB 3.0 x 2 , USB 3.0 x 2 , HD Audio(CTIA-SPK/MIC ) , Type – C USB3.1 Gen .2
Expansion Slots( Maximum Space) PCI-E x 7:Length<400mm(No Cooling of bottom) / Width <175mm
Lateral PCI-E x 3:Length<412mm(No Cooling of bottom) / Width <160mm / Height<65mm
Thermal Solution

Top : 120mm Fan x 1120mm Radiator

Rear : 120/140mm Fan x 3 420mm Radiator( Length<470mm / Thickness < 55mm )

360/280mm Radiator ( Length<400mm / Thickness < 65mm )

Bottom : 120/140mm Fan x 3 360/280mm Radiator ( Length < 485mm )

CPU  Heatsink

Height<170mm
